Name: PRY-10 Automatic 30m Speed Paper Straw Making Machine
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRY-10
Price: 20000 USD
Availability: InStock

PRY-10 Automatic 30m Speed Paper Straw Making Machine

Basisinformatie

Plaats van herkomst:	China
Merknaam:	PRINTYOUNG
Certificering:	CE
Modelnummer:	PRY-10

Min. bestelaantal:	1 INSTELLEN
Prijs:	USD 20000 Set
Verpakking Details:	Neemt vochtbestendige en schokbestendige verpakkingen aan die geschikt is voor langdurige wegvervoer
Levertijd:	35 dagen
Betalingscondities:	L/C, T/T
Levering vermogen:	30 sets per maand

Contact nu

Document Laag:

3 ~ 4 lagen

Max. Diameter:

10 mm

Min. Diameter:

5 mm

Max. dikte:

1 mm

Min. dikte:

0,2 mm

Min. lengte:

35 ~ 45 mm

Uitvoersnelheid:

3 ~ 30 m/min

Opwinder hoofd:

2 hoofden/1 st riem

Snijmethode:

10 messen, pneumatische aandrijving

Kleefmethode:

enkel & dubbel gezicht

Modus met vaste lengte:

encoder

Exploitant:

1 persoon

Asbevestigingsmodus:

Chuck

Snelheidscontrole:

servo-tracking

Diameter wikkelrol:

195 mm

Hoogte wikkelrol:

100 mm

Max. Omwentelingssnelheid:

200 tpm

Gewicht:

1350 KGS

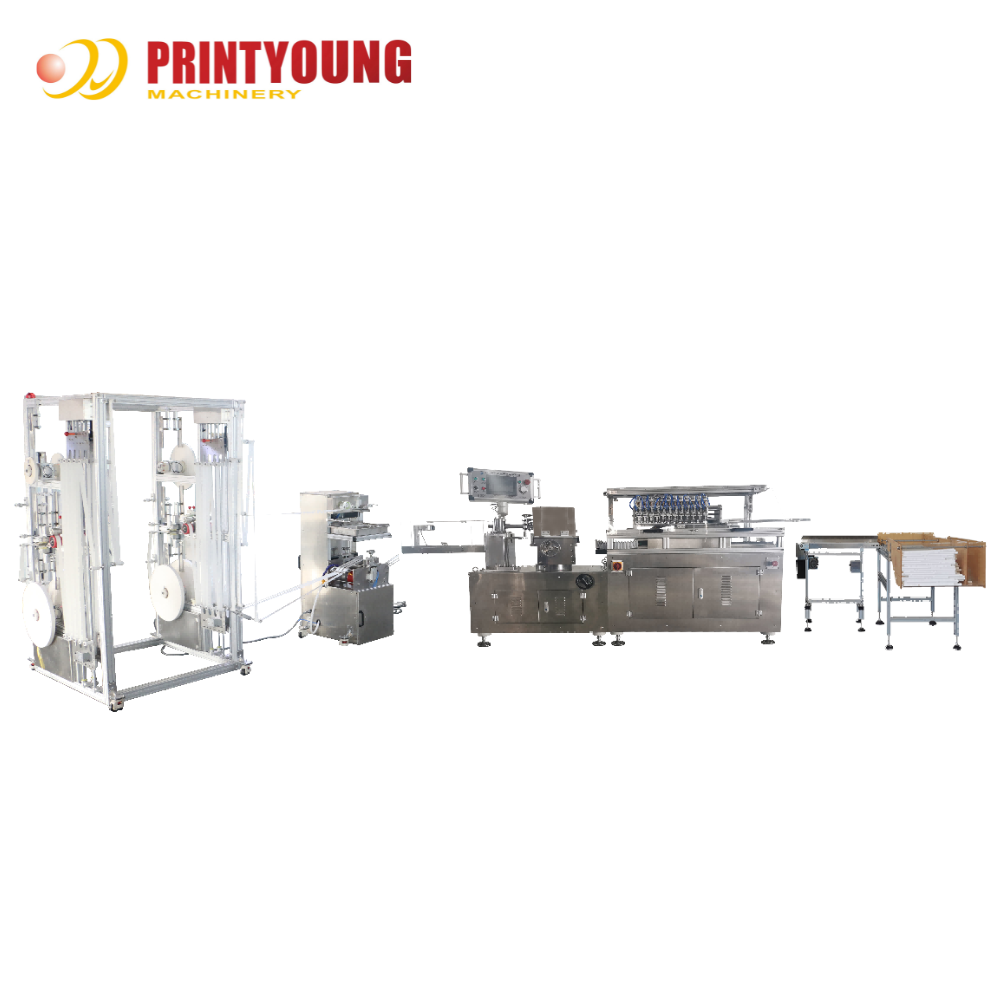

PRY-10 Automatic Paper Straw Machine

Features

Winding/spiraling different layers paper strip into paper tube with glue.
Multi-cutting knife system,by servo tracking,cut paper tube into small piece of paper drinking straws.
Material:sand-tube paper/corrugated paper/kraft paper/industrial glue
Sub-raw material:may need oil for lubrication and cooling.White mineral oil.
Capacity:
How many pieces straw per minute.

For example: 30m/min, making 8 * 60 mm straws. 30*1000/60=500 pcs/minute.

Technical Parameters

Paper Layer	3 ~ 4 layers
Max. Diameter	10 mm
Min. Diameter	5 mm
Max. Thickness	1 mm
Min. Thickness	0.2 mm
Min. Length	35 ~ 45 mm
Output Speed	3 ~ 30 m/min
Winder Head	2 heads / 1pc belt
Cutting Method	10 knifes , pneumatic driving
Glue Method	single & double face
Fixed Length Mode	Encoder
Operator	1 person
Shaft Fixing Mode	chuck
Speed Control	servo tracking
Input Power	3P / 380V / 50Hz
Main Part Dimension	2250 * 640 * 1600 mm
Land Area Dimension	7000 * 2500 * 1900 mm
Winding Roller Diameter	195 mm
Winding Roller Height	100 mm
Weight	1350 kgs
Main Power	2 kw
Max. Rotation Speed	200 r/min
Torque Output	68 N.m
Hub Drive	2

Configuration

Glue Station

1.Aluminum and stainless steel frame;
2.Stainless steel glue pot;
3.Glue recycle system;
4.Lubrication oil roller for inner paper strip;
5.One pair roller(rubber roller and steel roller)for filming glue on paper;
6.1 motor to drive glue roller;
7.Easy to adjust glue quantity by adjust the distance of two roller.

Paper Roll Hanging Bracket with Connecting Function

1.Help paper straw making machine no stop working.
2.Use auto detection:when the paper roll is going to use out,the mechanism will cut the tail ends of old paper roll and connect new paper roll automatically.
3.Smaller dimension,easy delivery and moving to adjust paper feeding angle.
4.Construction simpleness.If paper break,no need to stop to route the paper up and down complicated.
5.Constant unwinding force for the paper rolls,to let paper feeding more smoothly.
6.Our own patent for this connecting mechanism,not copy from others,especially European brands,so no patent problem.
7.Optional choose:4 layers connecting mechanism.
