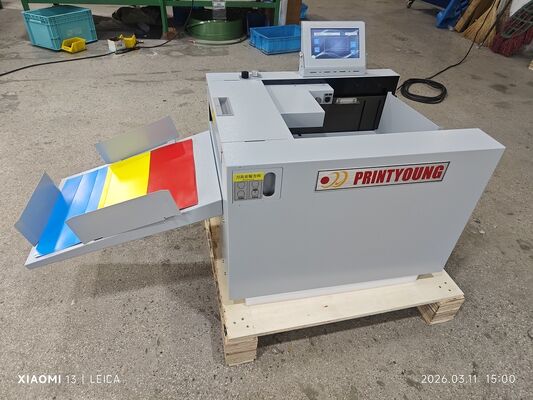

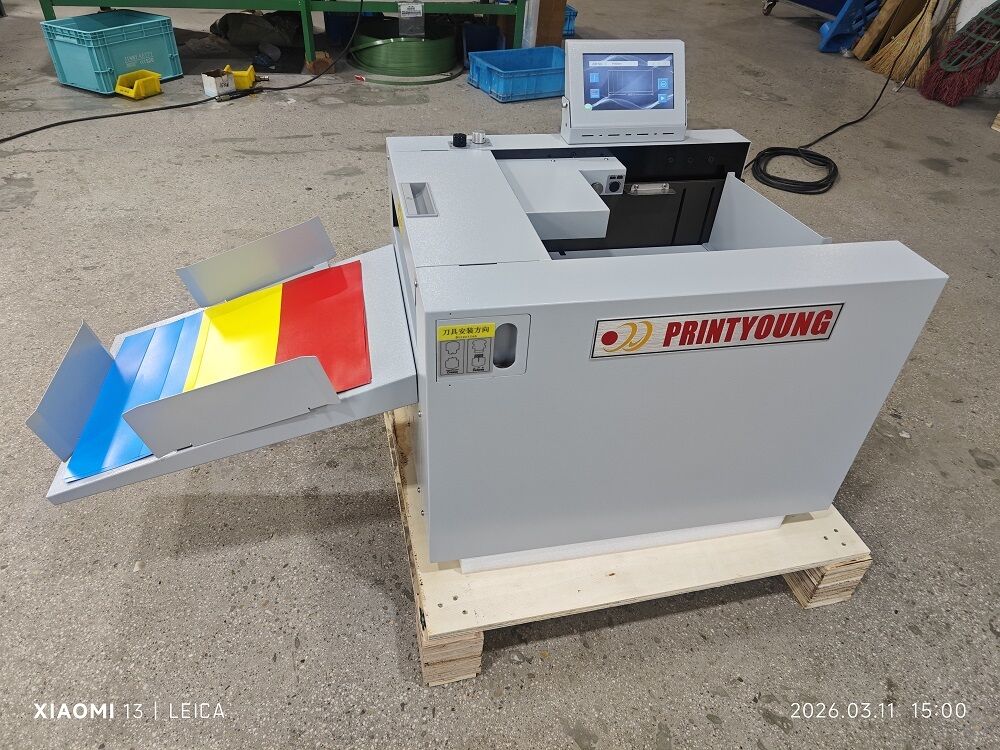

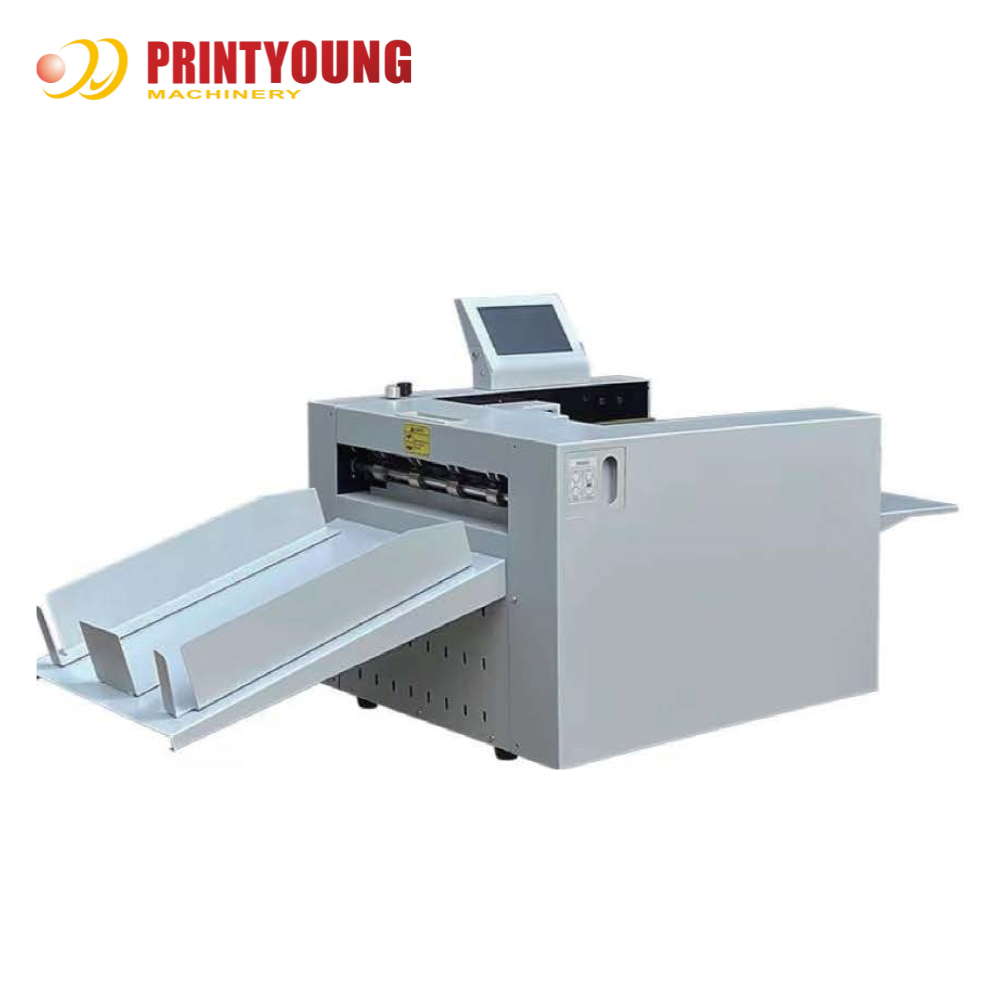

CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet)

CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet)
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet)
Basisinformatie
Plaats van herkomst: China
Merknaam: PRINTYOUNG
Certificering: CE
Modelnummer: CG-338
Min. bestelaantal: 1 set
Prijs: USD 1200 Set
Levertijd: 30 WERKDAGEN
Betalingscondities: L/C, T/T
Levering vermogen: 30 sets per maand
Contact nu
Max. Papierformaat: 330 * 3000 mm Toenemende dikte: 80~400 gram
Dikte van de stippellijn: 80~250 g Gegevensopslag vergroten: 32 groepen van enkel vel
Toenemend aantal: tot 32 stuks Toenemende nauwkeurigheid: ± 0,1 mm
Inkepingssnelheid (A4-inkeping): 4500/u Papierinvoermodus: zuigvoeding

CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 0
CG-338 Automatic Suction Paper Creasing Machine
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 1
Features
1. This machine uses industrial polyurethane cushion,which makes the indentation action more stable and the indentation line clearer.
2. The unique concave-convex indentation groove design can effectively change the direction of paper fiber and make the indentation line fuller.
3. The indentation strip adopts 6-series Al-mg-Sialloy,and the hardness reaches HB90-100after aging treatment. The knife blade is not deformed and the indentation effect is not out of shape for 3 million times of enterprise fatigue test.
4. It is the first to develop and use AC motor as the main motor in the market so that the mechanical performance of the mainframe does not decline and is stable fora long time.
5. Class2 PCB process and system self-checking and self-correcting process make the indentation accurate and stable!
6. Polyurethane knife gaskef for tooth line blade imported from Japan makes the sawtooth line uniform,uniform,easy to tear and break.
Technical Parameters
Model
CG-338
Max. Paper Size
330 * 3000 mm
Increasing Thickness
80～400 g
Dashed Line Thickness
80～250 g
Increasing Data Storage
32 groups of single sheet
Increasing Number
up to 32 pieces
Increasing Accuracy
± 0.1 mm
Indentation Speed(A4 Indentation)
4500/h
Paper Feeding Mode
suction feeding
Operation Interface
button touch screen
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 2
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 3
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 4
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 5
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 6
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 7
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 8
