Thuis ProductenDocument VerwerkingsmachinesPRY-1080B Automatic Paper Waste Stripping Machines with Double Heads

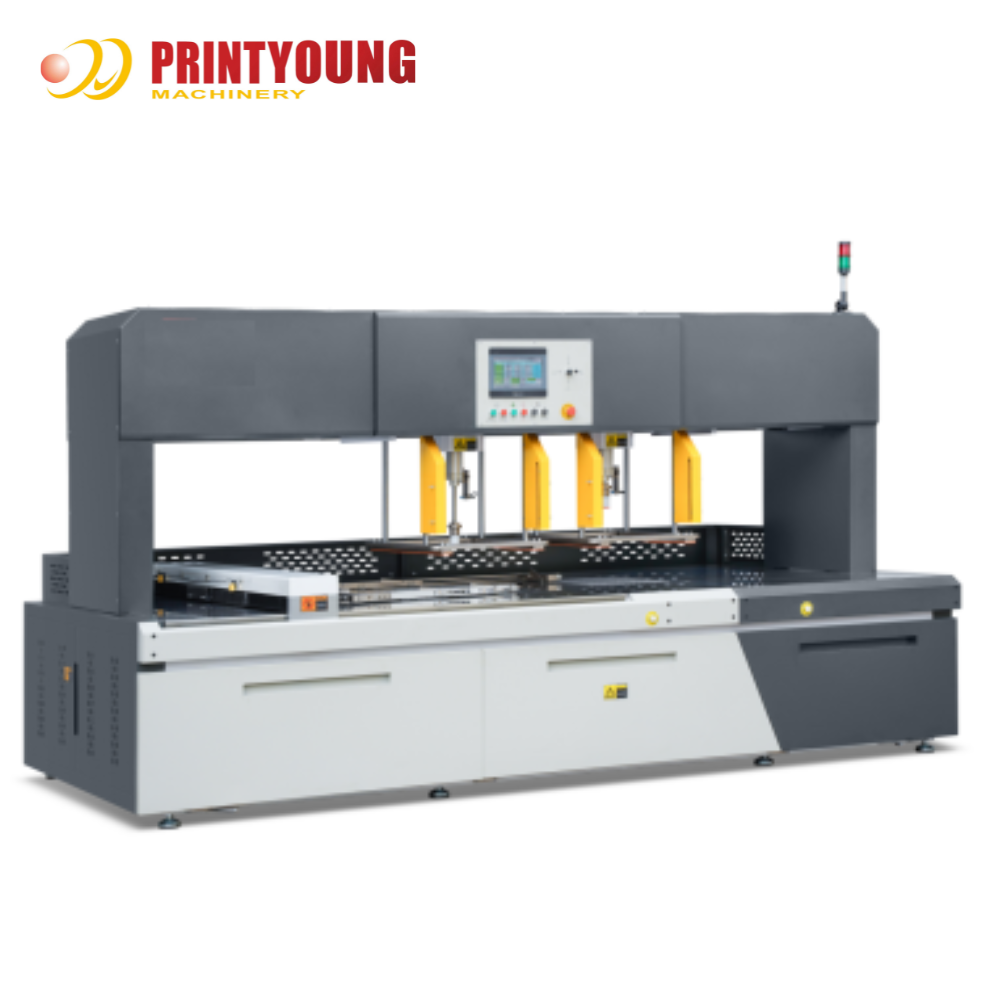

PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads

PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads
Basisinformatie
Plaats van herkomst: China
Merknaam: PRINTYOUNG
Certificering: CE
Modelnummer: PRY-1080B
Min. bestelaantal: 1 set
Prijs: USD 18500 Set
Verpakking Details: Neemt vochtbestendige en schokbestendige verpakkingen aan die geschikt is voor langdurige wegvervoer
Levertijd: 30 dagen
Betalingscondities: L/C, T/T
Levering vermogen: 30 sets per maand
Contact nu
Maschinenvloeroppervlak: 3800 * 1850 * 1950 mm Max. bladgrootte: 1080 * 780 mm
Min. bladgrootte: 650 * 450 mm Max. Stapelhoogte: 100 mm
Min. Stapelhoogte: 40 mm Max. grootte: 500 * 750 mm
Min. Blanco maat: 30 * 30 mm Max. Snelheid: 20 cycli/minuut
Druk: 70 bar Totaal vermogen: 5kw 380V

PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 0
PRY-1080B Paper Stripping Machine with Double Heads
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 1
Features
* Fully Automatic.
* Dual-head blanking system for running sheets with nested blanks.
* Heavy-Duty,quality-built gantry structure main frame.
* Frame style support base for precision blanking to ensure damage free loads.
* Operator friendly touch screen for quick and simple programing.
* Equipped with high-precision linear bearing rails and servo motors for smooth and precise movement.
* Big-size working area easy for doing jobs of big-size blanking,which can be customized according to customers’ demand.
* Automatic lubrication system with timely maintenance extends the service life of the machine.
* Hydraulic system with inserted motor and oil temperature cooling fan ensures constant and big working pressure.
* The complete machine is equipped with PLC,and with a touch screen interface in operation.
Technical Parameters
Model
PRY-1080B (double work unit)
Machine Floor Area
3800 * 1850 * 1950 mm
Max. Sheet Size
1080 * 780 mm
Min. Sheet Size
650 * 450 mm
Max. Pile Height
100 mm
Min. Pile Height
40 mm
Max. Blanking Size
500 * 750 mm
Min. Blanking Size
30 * 30 mm
Max. Speed
20 cycles/minute
Pressure
70 bar
Total Power
5kw 380V
Net Weight
3300 kgs
Gross Weight
3500 kgs
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 2
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 3
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 4
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 5
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 6
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 7
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 8
