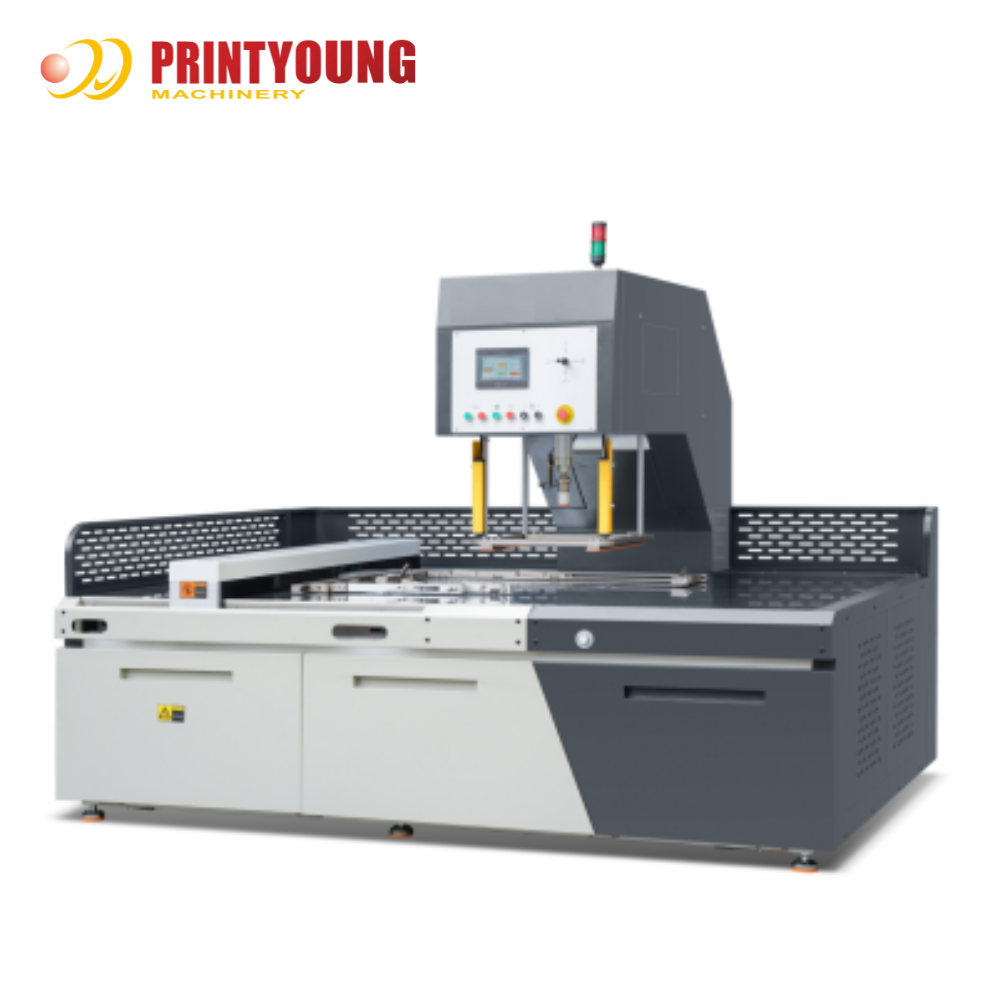

PRY-1080S Automatic Paper Waste Stripping Machines with Single Head

PRY-1080S Automatic Paper Waste Stripping Machines with Single Head
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head
Basisinformatie
Plaats van herkomst: China
Merknaam: PRINTYOUNG
Certificering: CE
Modelnummer: PRY-1080S
Min. bestelaantal: 1 set
Prijs: USD 15000 Set
Verpakking Details: Neemt vochtbestendige en schokbestendige verpakkingen aan die geschikt is voor langdurige wegvervoer
Levertijd: 30 dagen
Betalingscondities: L/C, T/T
Levering vermogen: 30 sets per maand
Contact nu
Maschinenvloeroppervlak: 2760 * 2050 * 1950 mm Max. bladgrootte: 1080 * 780 mm
Min bladgrootte: 650 * 450 mm Max. Stapelhoogte: 100 mm
Min. Stapelhoogte: 40 mm Max. grootte: 450 * 450 mm
Min. Blanco maat: 30 * 30 mm Max. Snelheid: 20 cycli/minuut
Druk: 8 bar Totaal vermogen: 4.5 kW
Netto gewicht: 2300 kg bruto gewicht: 2600 KGS

PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 0
PRY-1080S Paper Stripping Machine with Single Head
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 1
Features
1.Fully Automatic;
2.Single head blanking system for running sheets with nested blanks;
3.Heavy-duty,quality-built single support base;
4.Equipped with high-precision linear bearing rails and servo motors for smooth and precise movement;
5.Operator-friendly touch screen for quick and simple programing;
6.Can be customized according to customers’ job demand;
7.Adopts servo motor,double guide rail and ball screw ensure accuracy;
8.Automatic lubrication system with timely maintenance extends the service life of the machine;
9.Hydraulic system with inserted motor and oil temperature cooling fan(power 3.75kw) ensures constant and big working pressure;
10.The complete machine takes much less space and is equipped with PLC,touch screen interface in operation;
11.Used to replace manual labor,improving product quality and enterprise profit.
Technical Parameters
Model
PRY-1080S (single work unit)
Machine Floor Area
2760 * 2050 * 1950 mm
Max. Sheet Size
1080 * 780 mm
Min. Sheet Size
650 * 450 mm
Max. Pile Height
100 mm
Min. Pile Height
40 mm
Max. Blanking Size
450 * 450 mm
Min. Blanking Size
30 * 30 mm
Max. Speed
20 cycles/minute
Pressure
8 bar
Total Power
4.5 kw
Net Weight
2300 kgs
Gross Weight
2600 kgs
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 2
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 3
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 4
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 5
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 6
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 7
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 8
