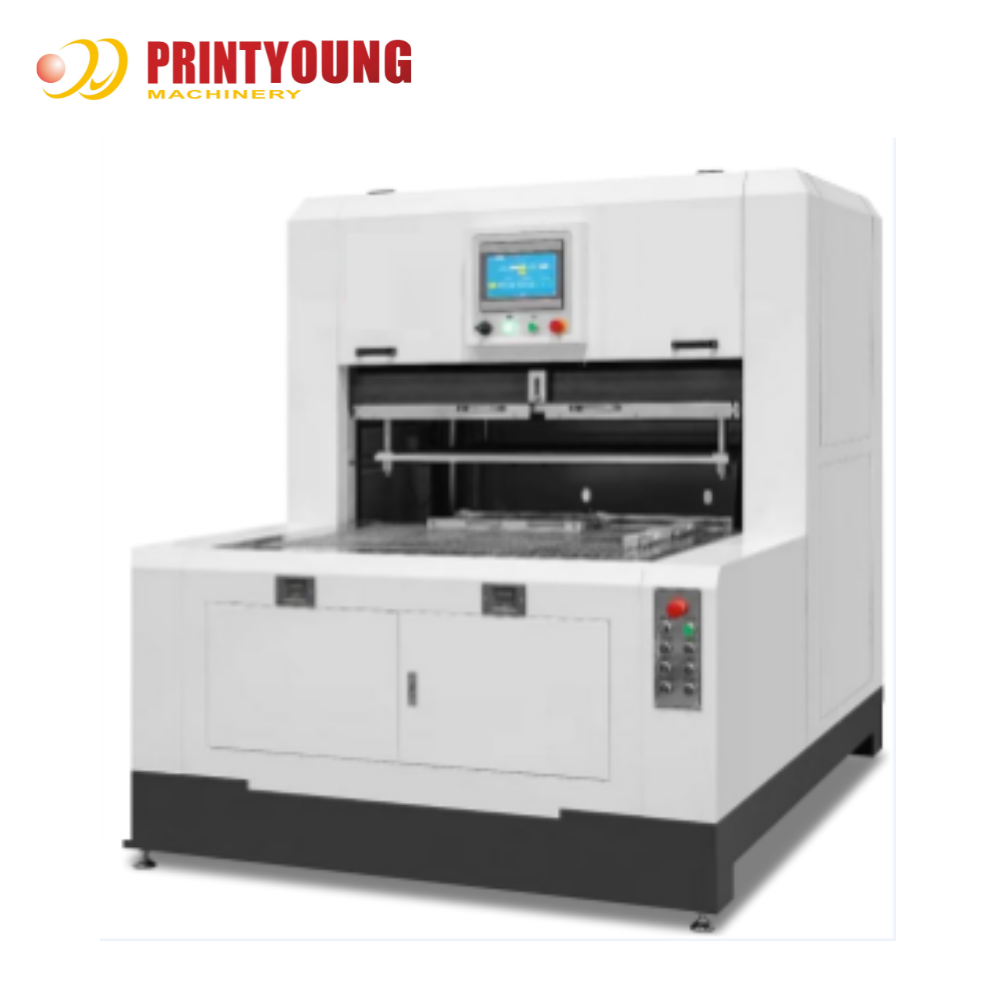

Name: PRY-1080 Automatic Paper Board Stripping and Blanking Machine
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: Pry-1080
Price: 19000 USD
Availability: InStock

PRY-1080 Automatic Paper Board Stripping and Blanking Machine

Basisinformatie

Plaats van herkomst:	CHINA
Merknaam:	PRINTYOUNG
Certificering:	CE
Modelnummer:	Pry-1080

Min. bestelaantal:	1 set
Prijs:	US 19000 Set
Verpakking Details:	Neemt vochtbestendige en schokbestendige verpakkingen aan die geschikt is voor langdurige wegvervoer
Levertijd:	30 dagen
Betalingscondities:	L/c, t/t
Levering vermogen:	30 set/sets per maand

Contact nu

Max. papiergrootte:

1080 * 780 mm

Min. papiergrootte:

400 * 200 mm

Max. grootte:

1030 * 730 mm

Min. Blanco maat:

40 * 40 mm

Het ontdoen van Hoogte:

40 ~ 120 mm

Gewicht:

3.5 T

Spanning:

380 V

Stroom:

8 kW

PRY-1080 Stripping and Blanking Machine

Features

* Large torque,fast starting,fast braking,fast reversing,precise pressure stroke control,and can work stably in harsh environments of high and low temperatures.It is safer and more stable than ordinary hydraulic systems.

* Compared with ordinary hydraulic systems,it saves 70% energy.

* It is 1/10 of the noise of ordinary hydraulic systems.

* It can continuously maintain pressure with infinite speed regulation,and the oil temperature is 1/3 of that of ordinary hydraulic stations,which prolongs the service life of the hydraulic system and is simple to maintain.

* High-density honeycomb panels can be equipped with φ 5/3 φ stripping pin to achieve full page stripping.The upper and lower honeycomb panels are engraved with scales for fast and accurate alignment.

Technical Parameters

Model	PRY-1080
Max. Paper Size	1080 * 780 mm
Min. Paper Size	400 * 200 mm
Max. Blanking Size	1030 * 730 mm
Min. Blanking Size	40 * 40 mm
Stripping Height	40 ~ 120 mm
Weight	3.5 t
Voltage	380 V
Power	8 kw
Blanking Speed	1 ~ 2 times/min
Net Weight	3500 kg
Machine Size	2000 * 1700 * 1950 mm
Machine Packing Dimension	2180 * 1870 * 2240 mm
