Thuis ProductenDocument VerwerkingsmachinesPRY-450E/550E Paper Rigid Box Making Machine with Automatic Mould Setting

PRY-450E/550E Paper Rigid Box Making Machine with Automatic Mould Setting

PRY-450E/550E Paper Rigid Box Making Machine with Automatic Mould Setting
PRY-450E/550E Paper Rigid Box Making Machine with Automatic Mould Setting
Basisinformatie
Plaats van herkomst: China
Merknaam: PRINTYOUNG
Certificering: CE
Modelnummer: Pry-450e/550e
Min. bestelaantal: 1 set
Prijs: US 7900 ~ 8500 Set
Verpakking Details: Neemt vochtbestendige en schokbestendige verpakkingen aan die geschikt is voor langdurige wegvervoer
Levertijd: 30 dagen
Betalingscondities: L/c, t/t
Levering vermogen: 30 set/sets per maand
Contact nu
Max. Doos grootte: 400 * 450 * 120 mm, 500 * 550 * 120 mm min. Doos grootte: 50 * 70 * 10 mm
Snelheid: 10 ~ 20 pc's/min Motoroevoerspanning: 2,5 kW / 220V
Machinedimensie: 1380 * 1160 * 2050 mm, 1500 * 1290 * 2050 mm Gewicht van de machine: 1000 kg, 1200 kg

PRY-450E/550E Paper Rigid Box Making Machine with Automatic Mould Setting 0

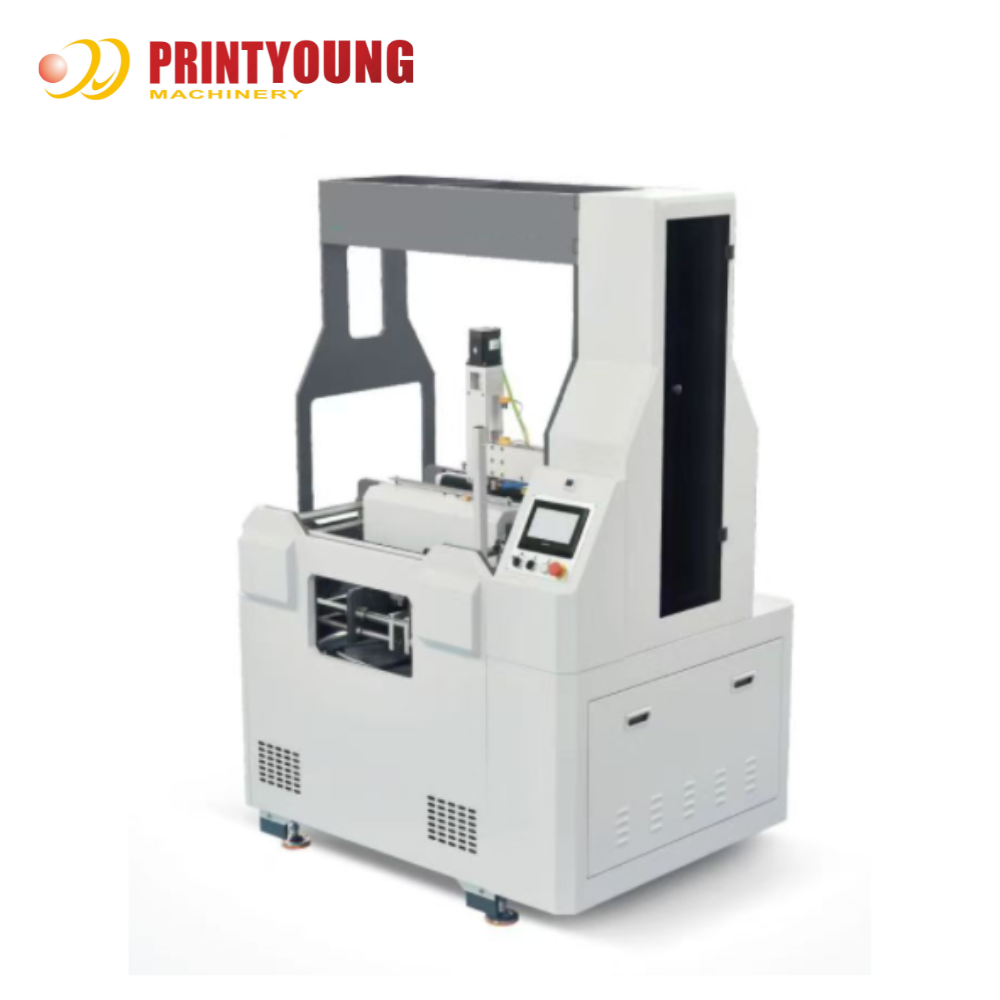

PRY-450E Rigid Box Making Machine
PRY-450E/550E Paper Rigid Box Making Machine with Automatic Mould Setting 1
Features
The machine is an ideal automation equipment for producing gift boxes and rigid boxes by manual locating the inner box and the facial paper on the assembly line,the fixed box is placed into the machine wood mold,then automatic running:box gluing,folding,and forming are completed at one time.15-20 pieces boxes can be produced per minute,which greatly improves the production efficiency of the rigid box and saves production costs,because each action is mechanically defensive standardizing the production of the product,greatly improving the quality of the product.
1.The machine is completed by servo motor and pneumatic,PLC programming control.
2.The machine debugging is completed by the man-machine interface selection,which is easy to adjust.
Technical Parameters
Model
PRY-450E
 PRY-550E
Max. Box Size
400 * 450 * 120 mm
 500 * 550 * 120 mm
Min. Box Size
50 * 70 * 10 mm
Speed
10 ~ 20 pcs/min
Motor Power Voltage
2.5kw / 220V
Machine Dimension
1380 * 1160 * 2050 mm
 1500 * 1290 * 2050 mm
Weight of Machine
1000 kg
 1200 kg
PRY-450E/550E Paper Rigid Box Making Machine with Automatic Mould Setting 2
PRY-450E/550E Paper Rigid Box Making Machine with Automatic Mould Setting 3
PRY-450E/550E Paper Rigid Box Making Machine with Automatic Mould Setting 4
PRY-450E/550E Paper Rigid Box Making Machine with Automatic Mould Setting 5
PRY-450E/550E Paper Rigid Box Making Machine with Automatic Mould Setting 6
PRY-450E/550E Paper Rigid Box Making Machine with Automatic Mould Setting 7
PRY-450E/550E Paper Rigid Box Making Machine with Automatic Mould Setting 8
