Name: PRY-1800 Single Pass Automatic Carton Box Sample Cutting Machine
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRY-1800
Price: 49500 USD
Availability: InStock

PRY-1800 Single Pass Automatic Carton Box Sample Cutting Machine

Basisinformatie

Place of Origin:	China
Merknaam:	PRINTYOUNG
Certificering:	CE
Model Number:	PRY-1800

Minimum Order Quantity:	1 Set
Prijs:	49500
Packaging Details:	Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time:	45 days
Payment Terms:	L/C, T/T
Supply Ability:	30 Set/Sets per Month

Contact nu

Model No.:

PRY-1800-Mini

Cardboard Thickness:

3 ply & 5 ply , 2 ~ 12 mm

Cardboard Density:

≤ 1400 gsm

Max. Board Size:

1800mm(W) * unlimited length

Min. Board Size:

140(W) * 600(L) mm

Changeover Time:

Appr. 1 ~ 6 seconds

Min. Slitting Distance:

≥ 25 mm

Min. Creasing Distance:

≥ 25 mm

Production Capacity:

8 ~ 15 pcs/min

Slotting Knife:

2 * 350 mm

Vertical Slitting:

6 vertical slitting

Vertical Creasing:

6 vertical creasing

Horizontal Cutting Knife:

Power Supply:

7 kw

Air Pressure:

0.6 ~ 0.7MPa , 50L/Min

Gross Weight/Dimension:

1848kg / 2500(W)* 1500（L）* 2030mm(H)

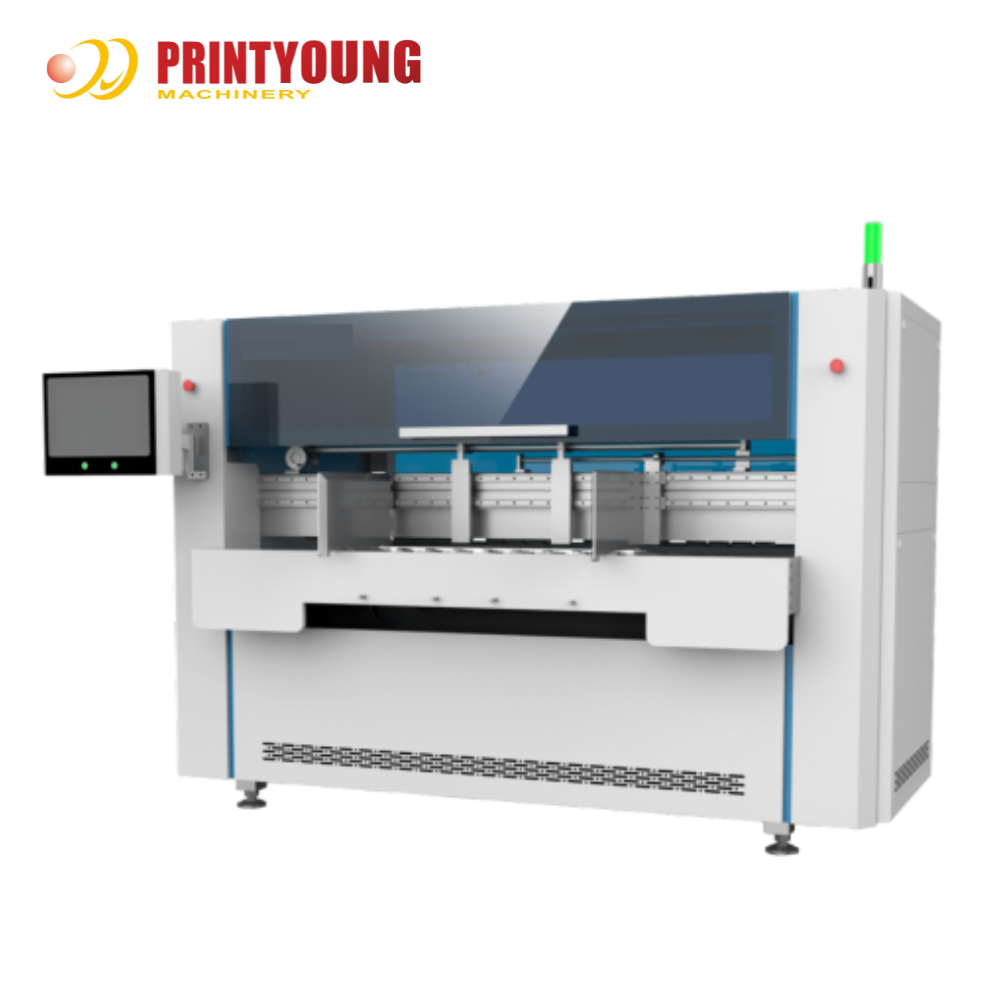

PRY-1800 Automatic Carton Box Cutting Machine

1 Machine=1 Slitter + 1 Slotter + 1 Gluer.All in one compact machine.

* Fully Automatic, independent motor control, appr. l-6s quick changeover time * Compact design, save more space * Max. 1800mm cardboard width,with unlimited length * Customized box styles,inconsistent creasing,all in one pass

* Board feeding,slotting,scoring,slitting,creasing,trimming,all in one compact machine.

Our Advantages

One operator is enough

Multifunctional machine

Short run orders processed in one pass.

No need die-cutting mold

Low energy consumption

Reduce cardboard waste

Quick installation and commissioning

Cardboard feeding accurate and stable

Excellent cutting performance

Professional service team

Features

PRY-1800-mini is a multifunctional machine with horizontal slotting and scoring,vertical slitting and creasing,horizontal cutting.It is now the most economic entry level, multifunctional box maker,providing all kinds of customized packaging solutions for end users as well as box plants.PRY-1800-mini is available for a wide range of many areas,such as furniture,hardware accessories,e-commerce logistics,many other industries,and so on.

1.One operator is enough
2.Competitive price
3.Multifunctional machine,no need die cutting mold
4.Change the order in appr. 1-6 seconds
5.Excellent cutting performance
6.Online installation and commissioning guide
7.Operation training to customers

Technical Parameters

Model No.	PRY-1800-Mini
Cardboard Thickness	3 ply & 5 ply , 2 ~ 12 mm
Cardboard Density	≤ 1400 g/m²
Max. Board Size	1800mm(W) * unlimited length
Min. Board Size	140(W) * 600(L)mm
Changeover Time	Appr. 1 ~ 6 seconds
Min. Slitting Distance	≥ 25 mm
Min. Creasing Distance	≥ 25 mm
Production Capacity	8 ~ 15 pcs/min
Slotting Knife	2 * 350 mm
Vertical Slitting	6 vertical slitting
Vertical Creasing	6 vertical creasing
Horizontal Cutting Knife	1
Power Supply	7 kw
Air Pressure	0.6 ~ 0.7 MPa , 50L/Min
Gross Weight/Dimension	1848kg / 2500(W) * 1500(L) * 2030mm(H)

Configuration

Control Panel

Interactive touch screen control panel with start & stop button.

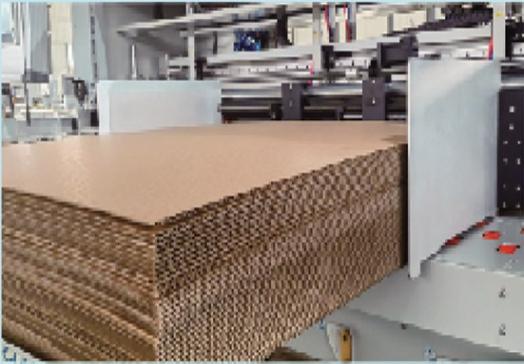

Cardboard Feeding

20-50 sheets can be loaded,thickness ranging from 2 to 12 mm.

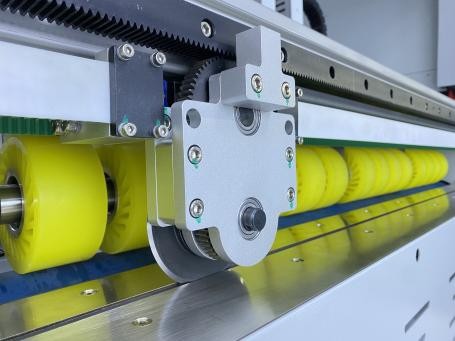

Vertical Slitting

6 cutting knives,rotated by the servo motor to make the edges of the carton box more beautiful and flat.

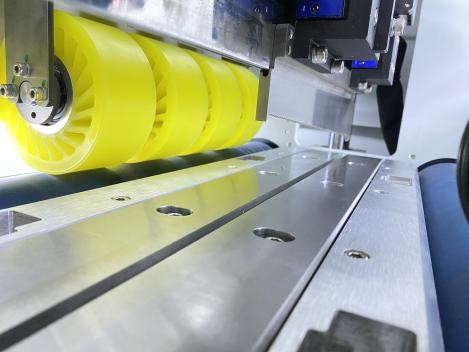

Vertical Creasing System

6 vertical creasing wheels,flexible to product as many different as possible.It’s never been so easy to make customized boxes.

Horizontal Slotting & Scoring

Two 350mm symmetrical slotting knives.Slotting knives and creasing beam integrated design.

Corss Cutting

Cut off excess cardboard without an additional paper separator.

Extra Parts for Free

Cutting knives * 4 pieces;Knife fiber comb * 2 pieces;Boxes collecting roller * 2 pcs

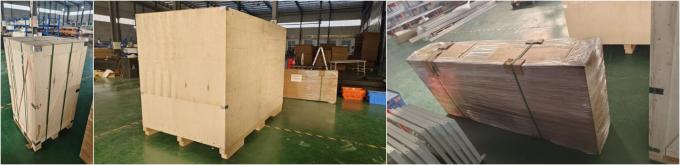

Packing Data

3 Packages in Total:
Machine main body in plywood box,measured 2600*1500*1960mm;
Boxes collecting Roller in carton box,measured 2050*850*350mm;
Voltage regulator in plywood box,measured 700*700*1225mm.

Total gross weight is 2404kgs.
