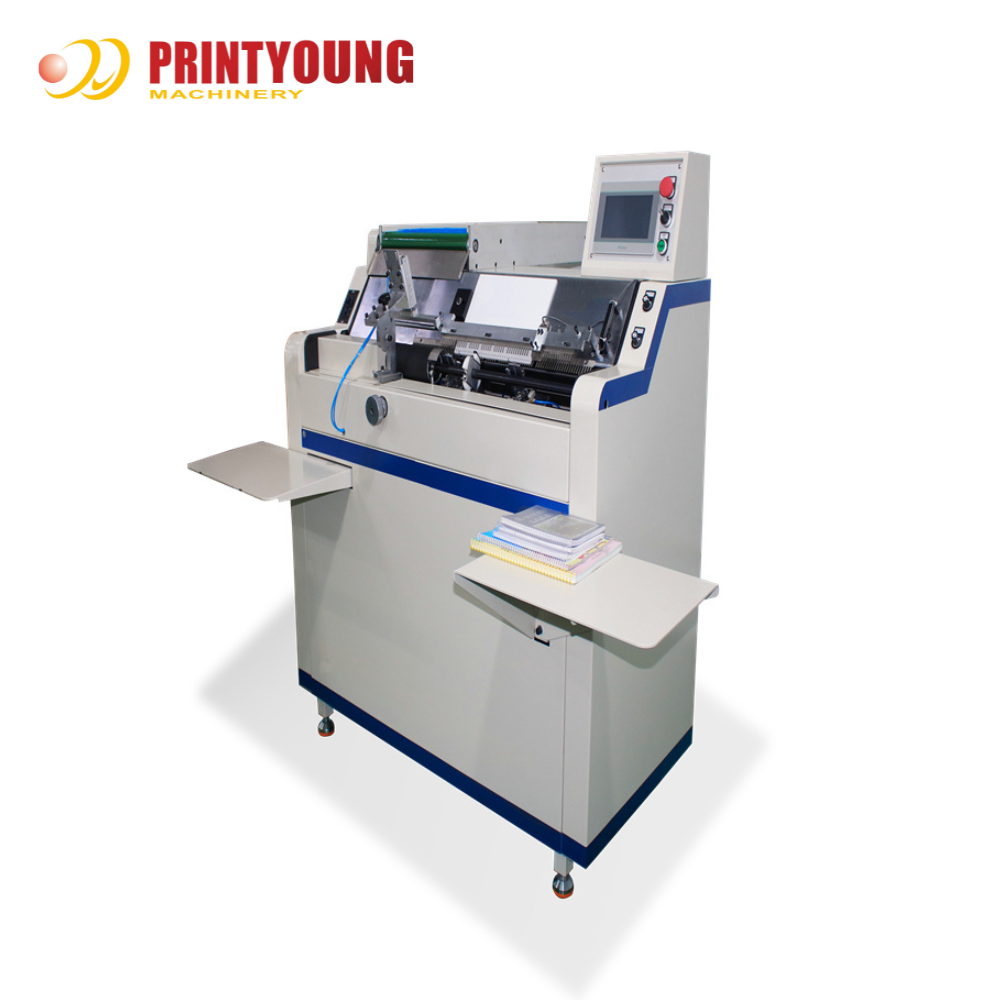

Name: PRY-350 Plastic Spiral Book Binding Machine
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRY-350
Price: 9500 USD
Availability: InStock

PRY-350 Plastic Spiral Book Binding Machine

Basisinformatie

Plaats van herkomst:	China
Merknaam:	PRINTYOUNG
Certificering:	CE
Modelnummer:	PRY-350

Min. bestelaantal:	1 Instellen
Prijs:	USD 9500 Set
Levertijd:	30 WERKDAGEN
Betalingscondities:	L/C, T/T
Levering vermogen:	30 set per maand

Contact nu

Werksnelheid:

500 ~ 100 boeken/uur

Min. bindgrootte:

135 mm

Max. Bindingsgrootte:

350 mm

Spiraaldiameter:

5/16 ~ 3/4

Toonhoogte:

4:1/6mm/5:1/3:1

Luchtdruk:

0,6 ~ 0,8 MPa

Machinegewicht:

380 kg

Stroom:

220V / 50Hz / 1,5kw

PRY-350 Plastic Spiral Book Binding Machine

Features

* Simple to operate,automatic feed the plastic spiral,automatic insert the plastic spiral, automatic cut and close the end.

* Can bind 500-1000 books/hr,according to the book size and operator's working speed.

* Book thickness range is wide,from 5-13mm.For plastic spiral wire spec range is 5/16" to 5/8 ".

* Suitable for Diary,notebook,hand-pad,all kind of loose-leaf product binding use.

* The beautifully outlooks.

* Easy to change the pitch.

Technical Parameters

Working Speed					500 ~ 100 books/hour
Min. Binding Size					135 mm
Max. Binding Size					350 mm
Spiral Diameter					5/16 ~ 3/4
Pitch					4:1/6mm/5:1/3:1
Air Pressure					0.6 ~ 0.8 MPa
Machine Weight					380 kg
Power					220V / 50Hz / 1.5kw
Machine Dimension					1500 * 1700 * 1400 mm

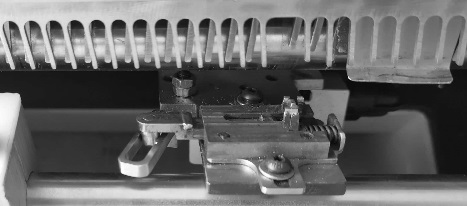

Configuration

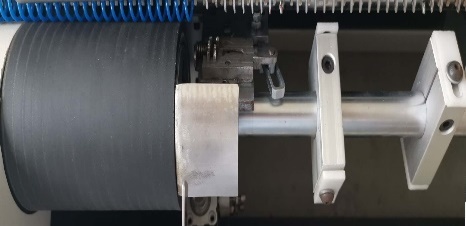

Two deliver belt control the plastic spiral feed one by one.

The electronic parts in our machines:include CHNT,MITSUBISHI,Ormon.

This part help to make the spiral move in a straight so that it will be easy to insert in the book.

This parts assist the plastic spiral move forward.

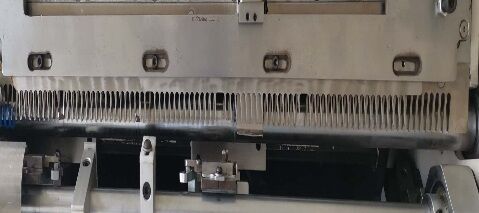

The pitch,it can be changed for different size. Such as 4:1/6mm/5:1/3:1.

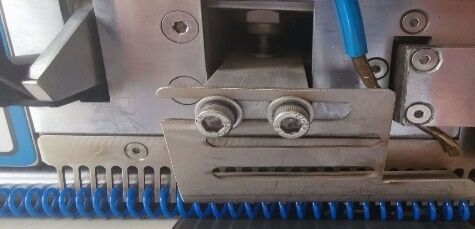

Cutter:cut the plastic spiral and close the end.

Applications

Plastic spiral binding machine,automatic insert spiral,automatic bending and closing hook,widely used in all kinds of children's books,picture a1bums,picture books,and coil books Solve the industry’s pain points in the traditional production process that plastic spiral binding can only be done manually!
