PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper

PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper
PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper
Basisinformatie
Plaats van herkomst: China
Merknaam: PRINTYOUNG
Certificering: CE
Modelnummer: PRY-1060
Min. bestelaantal: 1 set
Prijs: USD 63000 Set
Verpakking Details: Gebruikt vochtbestendige en schokbestendige verpakkingen die geschikt zijn voor wegtransport over la
Levertijd: 90 werkdagen
Betalingscondities: L/C, T/T
Levering vermogen: 30 sets per maand
Contact nu
Max. bladgrootte: 1080 * 780 mm Min. bladgrootte: 400 * 350 mm
Max. scherpe grootte: 1060 * 760 mm Min. Tangmarge: 9 ~ 17 mm
Verlaging van de regelhoogte: 23.8 mm Innerlijke achtervolgingsgrootte: 1120 * 786 mm
Die snijnauwkeurigheid: ≤ ± 0,1 mm Max. Stanskracht: 300 ton
Max. werksnelheid: VERPAKKEN EN VERZENDEN 7500 Max. Hoogte van de voedingsstapel: 1600 mm
Max. hoogte van de Leveringsstapel: 1400 mm Hoofdmotorvermogen: 11 kW
Wattage bij volledige belasting: 16,9 kW Luchtvereiste: 0,6 ~ 0,7 MPa, ≥ 0,37 m³/min

PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper 0

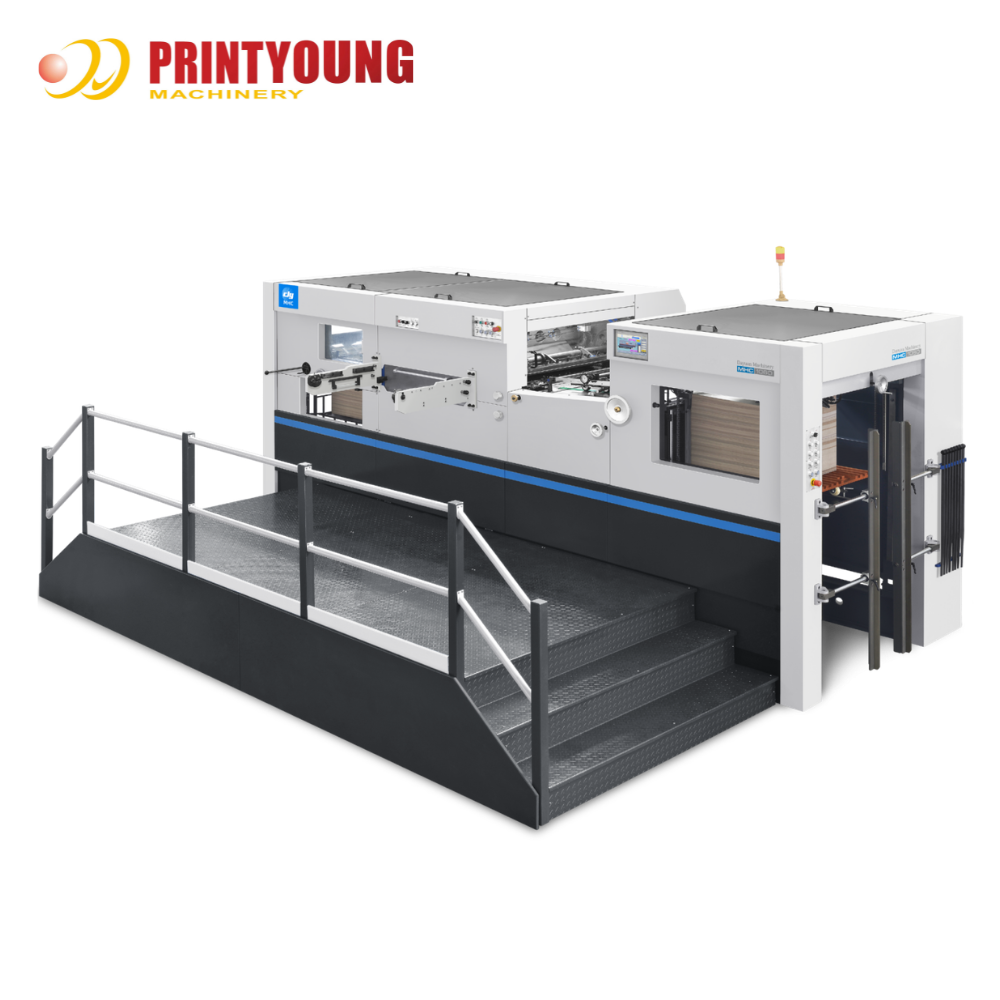

PRY-1060 Die Cutting Creasing Machine
PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper 1
Features
It is our great honor to introduce to you the most cutting-edge and advanced automatic die cutting machine equipment nowadays.The PRY-1060 automatic die cutting machine produced by our company can meet the requirements of your company and achieve the highest efficiency.For detailed product information,please refer to the following solution.
PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper 2
Technical Parameters
Max. Sheet Size
1080 * 780 mm
Min. Sheet Size
400 * 350 mm
Max. Cutting Size
1060 * 760 mm
Min. Gripper Margin
9 ~ 17 mm
Cutting Rule Height
23.8 mm
Inner Chase Size
1120 * 786 mm
Stock Range
Cardboard : 80 ~ 2000 g/m² , 0.1 ~ 2 mm
Corrugated board : ≤ 4 mm
Die Cutting Accuracy
≤ ± 0.1 mm
Max. Die Cutting Force
300 T
Max. Working Speed
7500 s/h
Max. Feeder Pile Height
1600 mm
Max. Delivery Pile Height
1400 mm
Main Motor Power
11 kw
Full Load Wattage
16.9 kw
Air Requirement
0.6 ~ 0.7 MPa , ≥ 0.37 m³/min
Net Weight Of Machine
16.5 T
Machine Dimensions
6300 * 4256 * 2350 mm
Configuration
PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper 3
* Non-stop high-speed paper feeding section.
* Fish-scale powerful suction feeder head with 4 suction and 4 delivery.The suction head can be adjust to various suction angles according to the deformation of the paper.
* Adjustable suction blower,suction head and air separation valve processed with ultra-hard alloy.
* Triple feeder head anti-collision device.
* Horizontal paper separation blower.
* The main and auxiliary stacking tables alternate without stopping,ensuring non-stop feeder operation.
* Electrical left/right fine-tuning device for the main feed pile.
* Pre-stacking device with rails for accurate & convenient paper loading.
* The paper alignment adjustment device can manually adjust the distance before the paper reaches the gauge without stopping the machine.
* Large inclined paper table,suitable for high-speed conveying of thin paper and curved paper.
* Blow-suction dual-purpose vacuum pump of German Becker brand.
PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper 4PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper 5

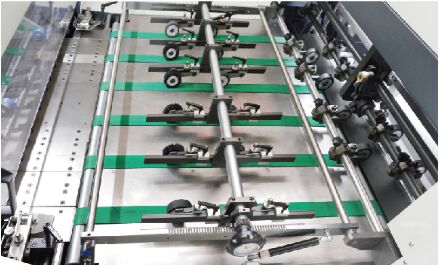

Paper Conveying Unit

* Imported paper feeding belt and stainless steel transfer plate.
* Pneumatic lifting device for paper feeding frame.
* Single-point clutch:The conveying part and the main machine part can be separated and synchronously combined at any time,which simplifies and facilitates the operation sequence.Regardless of proofing,pressure testing,etc.,the conveying part can be separated and closed as desired.
* PLC and electronic cam control the timing of the whole machine.

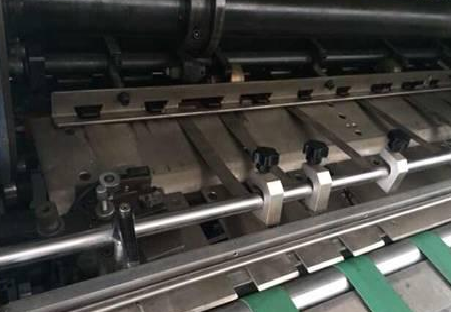

Front/Side Gauge

* Push-pull dual-purpose side gauges,one set for the operation side and one set for the transmission side.Side gauges can be adjusted between push-pull gauges to meet different paper requirements.
* Photoelectric detection on both side and front gauges.
* Slowdown mechanism for sheet feeding at the front gauge.
* Electromechanical double sheet detector.
PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper 6PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper 7
* The entire machine casting is made of QT-700-2 nodular cast iron.
* A complete set of imported anodized aluminum alloy gripper bars and positioning structure,fine steel gripper teeth and supporting gripper plates.The gripper bars adopt an adjustable gripper bar structure.
* The pressure regulating device enables precise pressure control via PLC touchscreen buttons.
* Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface.

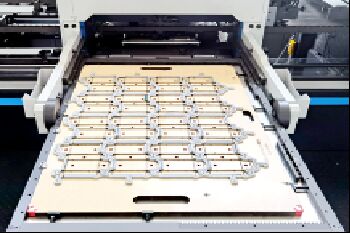

* Die-cutting base plate and die mould rotary device.
* The connection between the die cutting plate and the chase adopts the form of grasping snail and screws,combined with a central positioning system for fast and precise plate changing.
* The die-cutting chase and the lower mat are locked by the Japan SMC gas regulator, which can prevent improper locking of the upper frame caused by human error during installation.
* Japan SMC air pressure detection device with low-pressure alarm.
* Equipped with an air storage tank to ensure the stability of the air pressure of the whole machine.
PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper 8
Auto Lubrication System
The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.

Delivery Unit

* Roll-up curtain type auxiliary paper delivery device,can realize non-stop paper delivery.
* Adjustable mechanical paper delivery brush press mechanism to help gripper bar discharge and stack paper.
* Paper delivery alignment device.
* Photoelectric detection of upper and lower limit switches can effectively prevent the paper stacking table from excessive paper pile stacking and paper curling up.
* The two-way auxiliary air blowing for paper delivery and the manual sampling mechanism make the operation convenient.
* Spring chain adjustment device:Adjusting the tension of spring chain can reduce the inertia impact during the steering of the gripper bar,and maintain the balanced tension of the chain.
PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper 9

Electrical Unit

* Self-developed PLC control system(Invention Patent).
* The die-cutting unit adopts 10.4-inch touch display screens.
* The machine adopts Germany Moeller brand relays,AC contactors,air switches and buttons,to ensure the stability and reliability of electrical parts.
* The machine adopts Japanese Omron brand photoelectric switch,optical fiber,encoder and sensor,to ensure the accuracy and stability of electrical detection of each part of the action.
PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper 10
PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper 11
PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper 12
PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper 13
PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper 14
PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper 15
PRY-1060 Automatic High-Accuracy Computerized 380V Die Cutting & Creasing Machine for Paper 16
