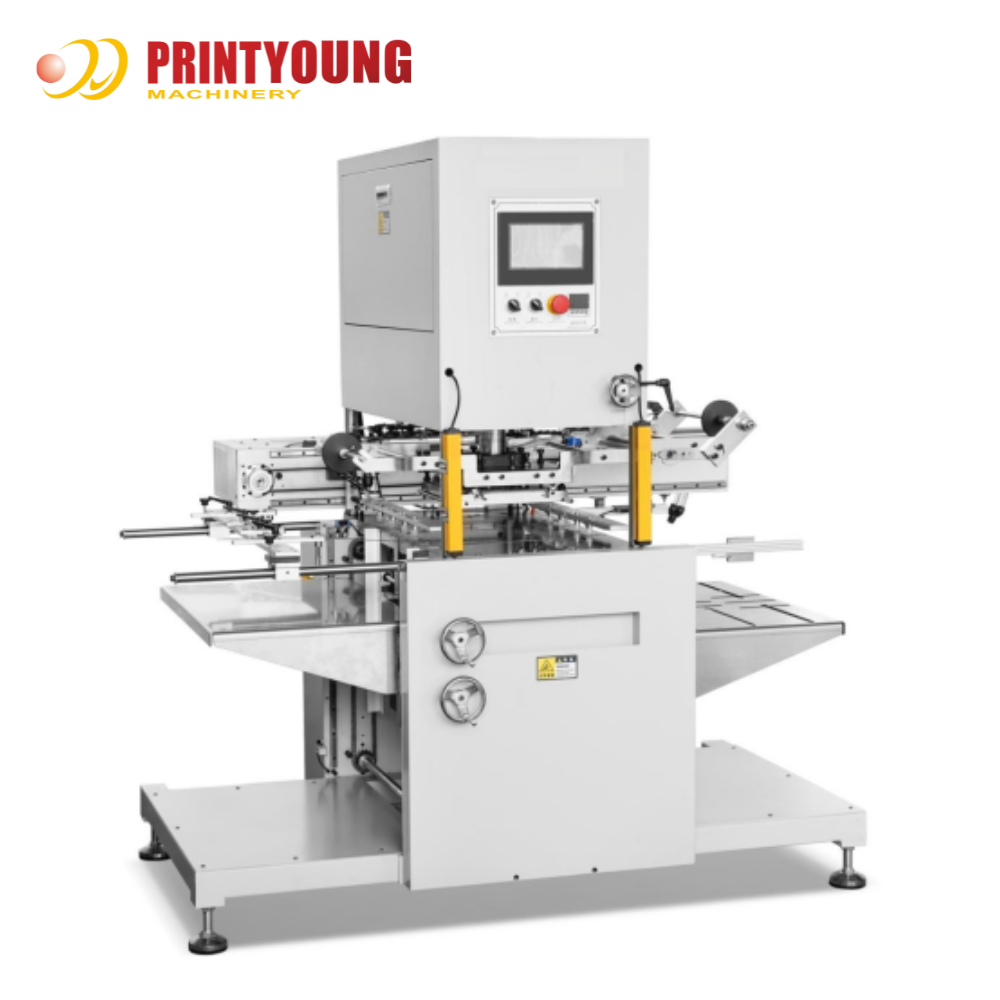

Name: PRY-58 Automatic Servo Hot Foil Stamping Machine
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRY-58
Price: 7800 USD
Availability: InStock

PRY-58 Hot Foil Stamping Machine

Features

PRY-58 model features comprehensive hardware configurations adaptable to diverse foil stamping requirements.

(1) The entire machine utilizes Q235 carbon steel.The body wall panels undergo special processing for high strength,permanent dimensional stability,and structural safety. (2) Equipped with imported Taiwanese ball screws to ensure precise movement.The main servo includes overload protection,and the timing belt features fracture protection. Automatically halts upon external impact to minimize damage to the body/feeding accuracy and prevent malfunctions.

(3) Main unit employs imported genuine bearings.

(4) Critical components integrate imported electrical parts(e.g., Omron [Japan],Schneider [France]).

(5) Foil stamping accuracy:±0.1mm;Maximum speed:1,800 sheets/hour.

(6) Features printyoung’s automatic pressure adjustment system for swift and precise stamping pressure control.

(7) Chinese-English touchscreen control interface.

(8) Taiwan,Chinese Air TAC pneumatic components ensure accuracy in every pneumatic motion.

(9) Main PLC utilizes Printyoung Electric for stable machine smooth operation.

Technical Parameters

Max. Feeding Paper Size	550 * 450 mm
Min. Feeding Paper Size	150 * 150 mm
Max. Foil Stamping Size	300 * 250 mm
Paper Specifications	128 ~ 3000 g/m²(cardboard),3.0mm thick grey board
Foil Stamping Precision	≤ ± 0.1 mm
Max. Working Pressure	20 T
Max. Working Speed	1800 s/h
Max. Feed Pile Height	350 mm
Max. Foil Length	240 m (length wise)
Main Motor Power	1.5 kw
Overall Dimensions	1700×1250×1800mm
Machine Weight	650kg
Full Load Power	3.5kw

Configuration

Paper Feeding Section

1.Utilizes an advanced control system to regulate the paper feeding speed, ensuring smooth paper transportation.
2.The paper separation part is made of special aluminum alloy for smoother paper feeding.

3.Single-sheet feeding,ensuring stability and accuracy.
4.Servo micro-adjustment technology for the suction paper row,allowing adjustments without stopping the machine.

Electrical Unit

1.The human-machine interactive touch interface allows configuration of different long and short pulls.

2.An alarm is triggered if the foil length is less than 6 cm.
3.The computer-controlled foil monitoring system displays the remaining and consumed foil length.
4.Adopting Printyoung PLC control system to ensure machine stable running.
5.Adopting German Sike Optoelectronics.

Hot Stamping Section

1.The hot stamping plate uses 7075 high-grade aviation aluminum alloy and surface undergoes hard anodizing treatment,ensuring lightweight operation while maintaining high surface hardness and resistance to deformation.
2.Longitudinal Foil Feeding System:Reduces foil consumption and saves foil replacement time.
3.Dual Longitudinal Foil Feeding Mechanism:Equipped with Hangzhou Zhishan servo motors (China) and Printyoung PLC control system for user-friendly operation.The mechanism is positioned behind the longitudinal foil feeding to ensure smooth and flat foil collection after stamping.
4.Independent Manual Control:The main unit can be operated manually when needed.
5.Parallel Pressure Adjustment Device:Features a flat upper platform for precise pressure regulation.
6.Vacuum negative pressure detection ensures machine operation ceases upon absence of paper.
7.L-Shaped Right-Angle Push Gauge:Accommodates different printing registration requirements for accurate alignment.

Paper Receiving Section

1.Automatic paper aligning device.

2.Photoelectric device ensures neat paper collection.

3.Automatic lifting and lowering control system for the paper receiving table

Main Spindle Part

The spindle is driven by a 1.5kw servo motor,and the four column structural design makes the hot stamping more stable and less prone to tilting.The high-frequency quenching depth of the spindle core reaches 0.5 millimeters,and the surface is plated with hard chromium,which is durable and wear-resistant.

Paper Transfer Part

The horizontal paper feeding device adopts servo motor control,which is more efficient and accurate.

Safety Protection Part

This machine is equipped with a safety protection grating.Once an object is detected approaching during machine operation,the machine will sound an alarm and shut down to protect the safety of the operator.

Applications

label:

Plaats van herkomst:	China
Merknaam:	PRINTYOUNG
Certificering:	CE
Modelnummer:	PRY-58

Min. bestelaantal:	1 INSTELLEN
Prijs:	USD 7800 Set
Verpakking Details:	Neemt vochtbestendige en schokbestendige verpakkingen aan die geschikt is voor langdurige wegvervoer
Levertijd:	20 dagen
Betalingscondities:	L/C, T/T
Levering vermogen:	30 sets per maand

Max. Papierformaat invoeren:	550 * 450 mm	Min. Papierformaat invoeren:	150 * 150 mm
Max. Foliedruk maat:	300 * 250 mm	Foliedrukprecisie:	≤ ± 0,1 mm
Max. werkdruk:	20 t	Max. werksnelheid:	1800 s/u
Max. Hoogte voerstapel:	350 mm	Max. Folie lengte:	240 m (in de lengte)
