Thuis Productenomslag gluer machinePRY-180/46 High Speed Automatic Thread Book Binding Sewing Machine

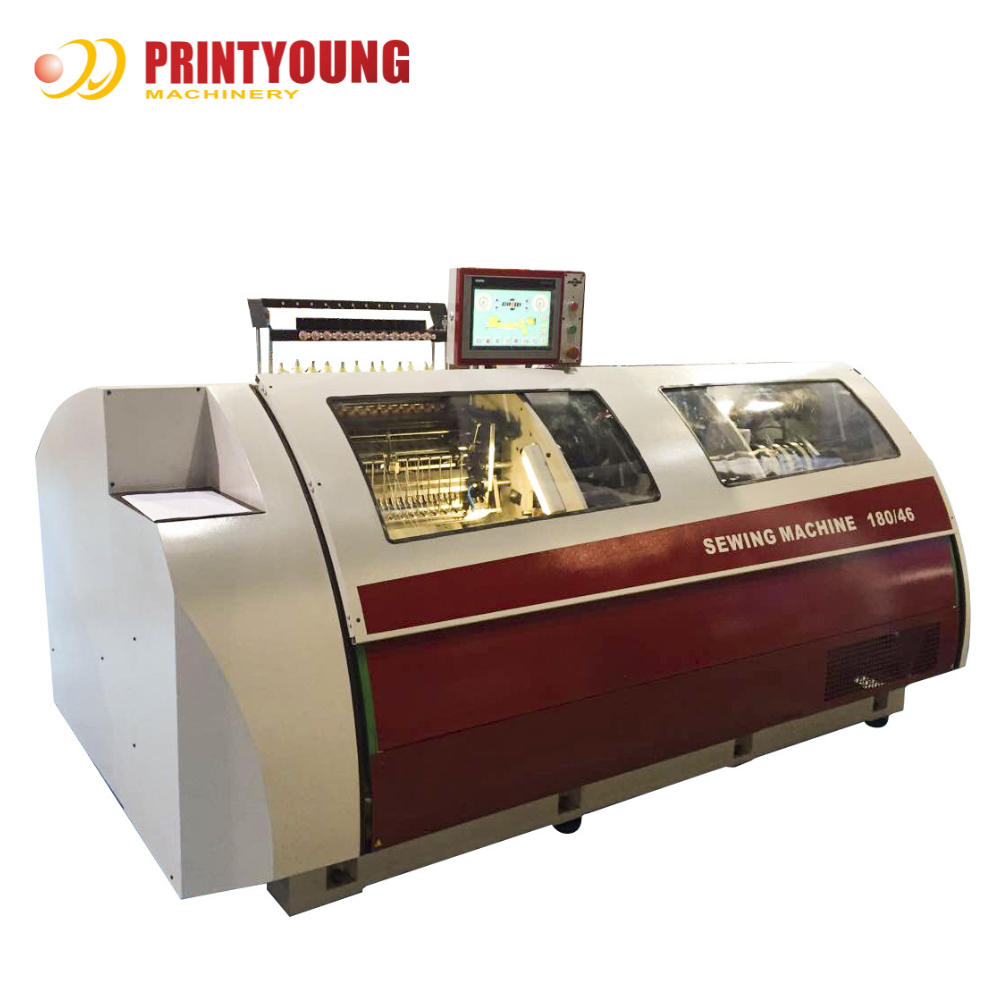

PRY-180/46 High Speed Automatic Thread Book Binding Sewing Machine

PRY-180/46 High Speed Automatic Thread Book Binding Sewing Machine
PRY-180/46 High Speed Automatic Thread Book Binding Sewing Machine
PRY-180/46 High Speed Automatic Thread Book Binding Sewing Machine
Basisinformatie
Plaats van herkomst: CHINA
Merknaam: PRINTYOUNG
Certificering: CE
Modelnummer: Pry-180/46
Min. bestelaantal: 1 set
Prijs: US 100000 Set
Verpakking Details: Neemt vochtbestendige en schokbestendige verpakkingen aan die geschikt is voor langdurige wegvervoer
Levertijd: 30 dagen
Betalingscondities: L/c, t/t
Levering vermogen: 30 set/sets per maand
Contact nu
Max. SNELHEID: 180 keer/min Max. Bindingsgrootte: 460 * 320 mm
Min. bindgrootte: 120 * 75 mm Aantal naalden: 11 groepen
Naaldafstand: 19 mm Stroom: 9 kW
Gecomprimeerde lucht: 40 nm³ / 6Bar Netto gewicht: 3500 kg

PRY-180/46 High Speed Automatic Thread Book Binding Sewing Machine 0
PRY-180-46 Automatic Book Sewing Machine
PRY-180/46 High Speed Automatic Thread Book Binding Sewing Machine 1
Features
1.Can produce up to 10,000 signatures per hour to achieve high efficiency and low cost.
2.Enhance production speed.The max speed of dealing normal paper and coated paper can reach 180 cycle/min.
3.The design of PLC programmed color touched control panel makes the machine possess the functions like non-stop,brief & fast program setting,different sewing program storage, product data display and adjusting automation etc.
4.Frictionless feeding design can process kinds of various signatures.
5.All feeding processes are well controlled to ensure high speed.
6.High-speed detection setting.Using the newest intelligent analog video technology,the setting can scan the high-resolution graphics,so do the pure characters signatures.The system performs the automatic recognition memory only by one book.
7.Closed cam box design.Its drive shaft moves in the closed oil groove,which guarantee the using life of the cam,also the max non-noise,non-vibration and non-daily inspection & maintenance.The sewing saddle is very sturdy with high strength.It connected with the cam box directly,no need of any other transmission settings.
8.Vacuum signature-exposer design.All 4 satisfy the different expose requirement.The specific air blower makes an air cushion between the operating folds and the last folds, which eliminate the double sheet effectively.
Technical Parameters
Max. Speed
180 times/min
Max. Binding Size
460 * 320 mm
Min. Binding Size
120 * 75 mm
Number of Needles
11 groups
Needle Distance
19 mm
Power
9 kw
Compressed Air
40 Nm³ / 6bar
Net Weight
3500 kg
Dimension
2850 * 1200 * 1750 mm
Applications
Can be applied to wide range of paper-----light weight paper,book paper,coated paper and recycle paper.The fastest speed can be reach 180 cycles/min.Various high effective product become true for the extremely starting of the automatic edition function.Whether classic sewing or stagger stich,it perform perfect sewing quality,flexible and briefly.
PRY-180/46 High Speed Automatic Thread Book Binding Sewing Machine 2
PRY-180/46 High Speed Automatic Thread Book Binding Sewing Machine 3
PRY-180/46 High Speed Automatic Thread Book Binding Sewing Machine 4
PRY-180/46 High Speed Automatic Thread Book Binding Sewing Machine 5
PRY-180/46 High Speed Automatic Thread Book Binding Sewing Machine 6
PRY-180/46 High Speed Automatic Thread Book Binding Sewing Machine 7
PRY-180/46 High Speed Automatic Thread Book Binding Sewing Machine 8
