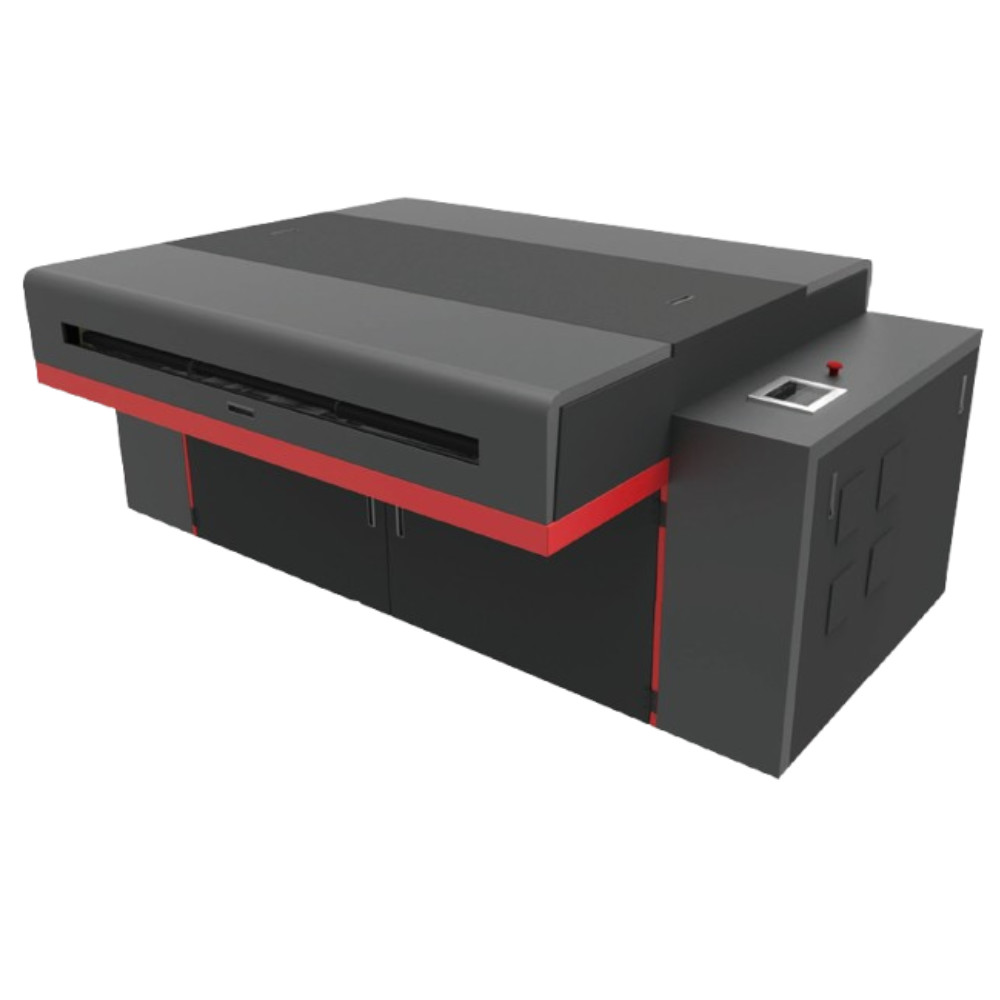

DX1450T Offset thermische & UV CTP plaat maken machine

Basisinformatie

Place of Origin:	China
Merknaam:	PRINTYOUNG
Certificering:	CE
Model Number:	DX1450T

Minimum Order Quantity:	1 Set
Prijs:	US 53500 ~ 56500 Set
Packaging Details:	Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	30 Set/Sets per Month

Contact nu

Model:	DX1450T-64 , DX1450T-96	Laser System:	830nm LD , 64/96channels
Resolution:	2400 dpi	Exposure Structure:	external drum
Max. Plate Size:	1450 * 1180 mm	Min. Plate Size:	650 * 550 mm
Max. Hanged Line:	300 lpi	FM Dots Output:	AM/FM hybrid screening
Repeatability:	± 0.005 mm	Weight:	2000 kg

DX1450T Offset CTP plaatmachine

Technische parameters

DX1450T Offset CTP plaatmachine
Model	DX1450T-64	DX1450T-96
Lasersysteem	830nm LD, 64 kanalen.	830nm LD, 96 kanalen.
Resolutie	2400 dpi
*Uitgangssnelheid(14501150 mm)**	18 p/h	23 p/h
Exposurestructuur	externe trommel
Max. plaatgrootte	1450 * 1180 mm
Min. Plaatgrootte	650 * 550 mm
Dikte van de plaat	thermische ((830nm) 0,15 ~ 0,4 mm thermische ctp-plaat zonder verwerking
Max. Hanged Line	300 lpi
FM Dots-uitgang	AM/FM hybride screening
Herhaalbaarheid	± 0,005 mm
Stroomvoorziening	380V 3Φ 50/60Hz 10kw piek
Externe dimensie	2736 * 1750 * 1350 mm
Gewicht	2000 kg
